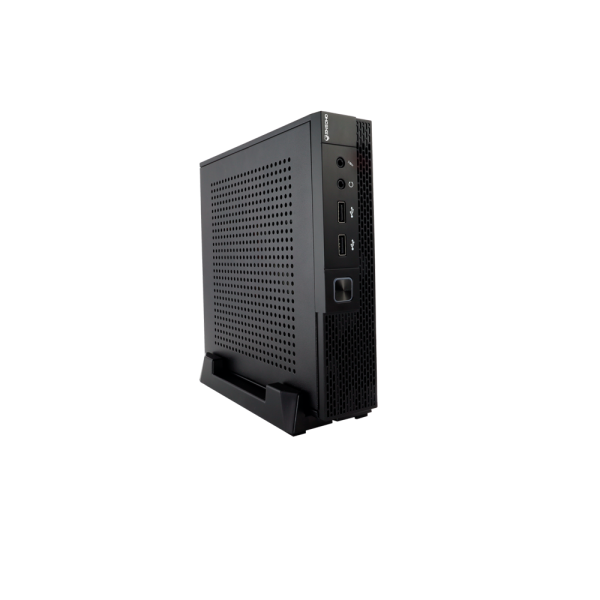

Máy tính công nghiệp EN-MT-N97 - Hình ảnh 1
Máy tính công nghiệp EN-MT-N97 - Hình ảnh 2
Máy tính công nghiệp EN-MT-N97 - Hình ảnh 3

Máy tính công nghiệp EN-MT-N97

  • Intel Alder Lake SoC processors
  • Fanless embedded PC. Noiseless
  • Supports three monitors output and 4K dispaly
  • Supports daul Intel® 2.5GbE LAN
  • Supports 4G/5G SIM card for IOT computer devices
Danh mục:

Sản phẩm tương tự

EN-MT-N97
Processor Options Intel® N97 (4core, up to 3.6GHz, TDP 12W)
Chipset Intel® N97
Graphic Intel® UHD Graphics
Display 2 x HDMI
1 x DP (USB Type C) with power delivery
(max. 100W 20V/5A)
Memory DDR4 3200Mhz SO-DIMM, up to 16GB
Expansion Slot 1 x M.2 key-E type 2230 w/ 1 x USB 2.0 + 1 x PCIe X1
1 x M.2 key-B type 3042/3052 with PCIe x1 + USB 3.2 & SIM card slots
Storage 1 x SATAIII
1 x M.2 key-M type 2242/2280 w/ PCIe x1
Serial Port 1 x RS232/422/485 (COM1) (opt.)
USB 2 x USB 3.2 Gen1
1 x USB 3.2 Gen2 for 1 x Rear Type C connector
4 x USB 2.0
Ethernet 2 x RTL8111H-CG GbE LAN
Audio Audio Codec: ALC897 + ALC105
External I/O 1 x DC 9~24V Jack
2 x HDMI
1 x USB Type C
2 x RJ45 (GbE)
1 x Audio Jack (Line-out)
1 x Power LED / 1 x HDD LED
1 x Earphone & MIC Jack
1 x Power Key
1 x TPM 2.0 onboard
Power Supply 60W adapter (12V/5A)
Dimension (LxWxH) 196.5 x 193 x 45 mm
Operating temperature 0°C ~ 60°C Humidity: 5% ~ 90%
OS Support Windows 10/11 64bit
Windows 10 IoT Enterprise 2021 Linux Ubuntu 20.04
Net weight 1 kg
